Recent Works

Click on the images below to find out more about the project and what we did. Call us on 03 9314 9468 for a FREE QUOTE.

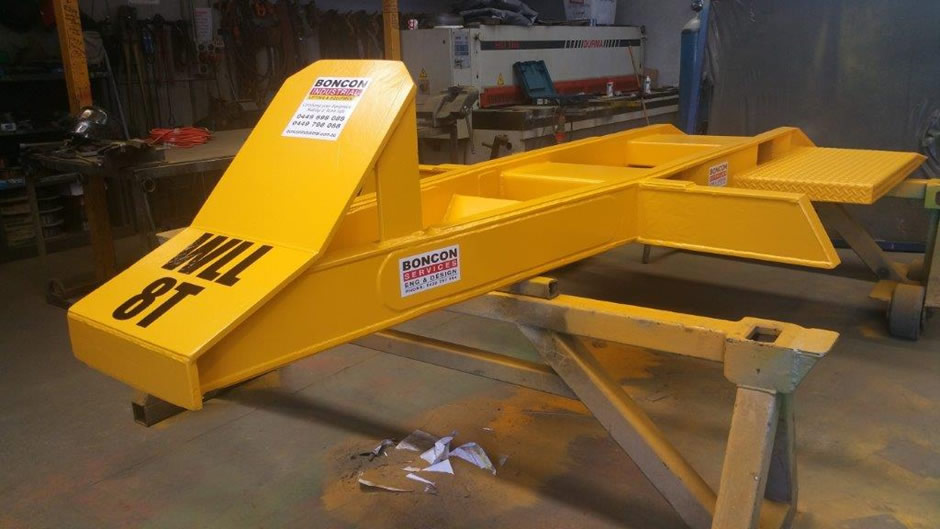

Boncon Services fabricated a goose neck to go onto a maffie trailer as requested by Patrick Geelong. These trailers are built to withhold 60 tonne. All equipment that is made by Boncon Services is certified for heavy lifting with drawings and computations. This certification complies above all Australian standards.

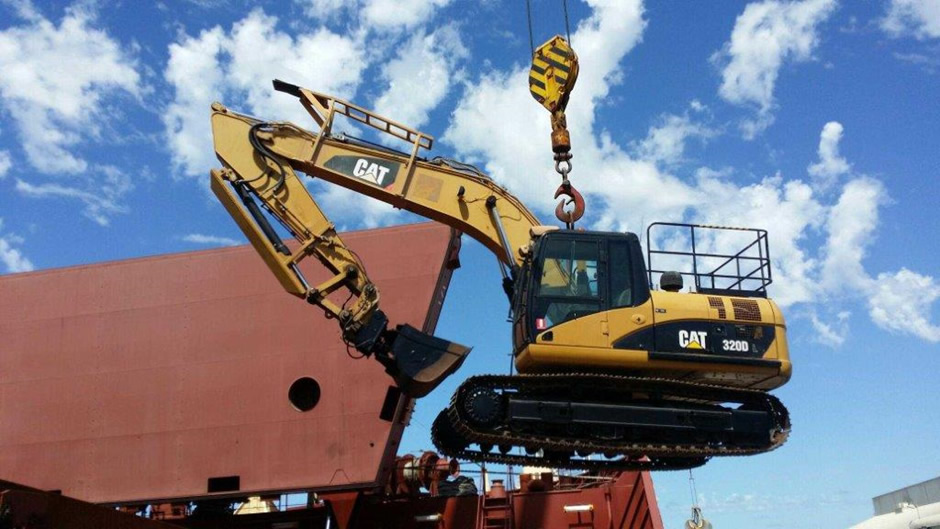

Customers require central lifting points to lift excavators in and out of ships. These central lifting point modifications are engineered with drawings and computations, proof tested and to comply with all Australian Standards for lifting. Boncon Services also added guards over the hydraulic rams to protect rams from combing of the ships.

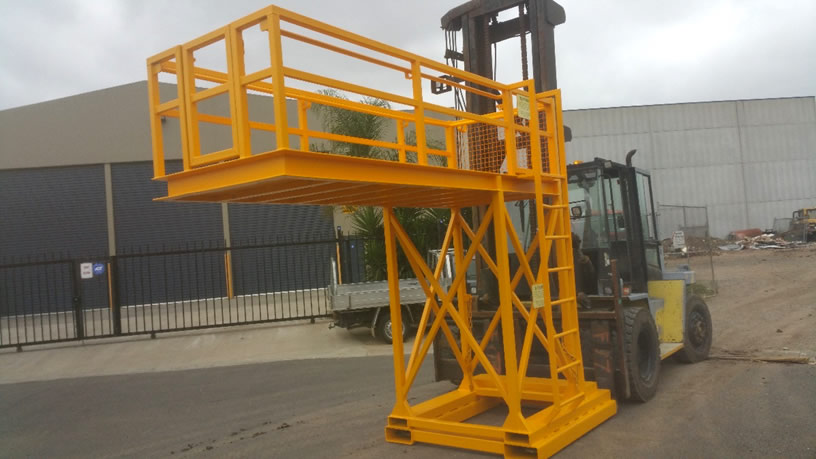

Patrick Geelong required larger tyne pockets (located on the bottom of the platform) for bigger forklifts to stabile the platform for the safety aspects of the weight distribution. Boncon Services remove all rust, debri and painted. We always complete a full safety check so that it complies with Australian standard for all safety cages.

Boncon Industrial - Extendable lifting spreader arm

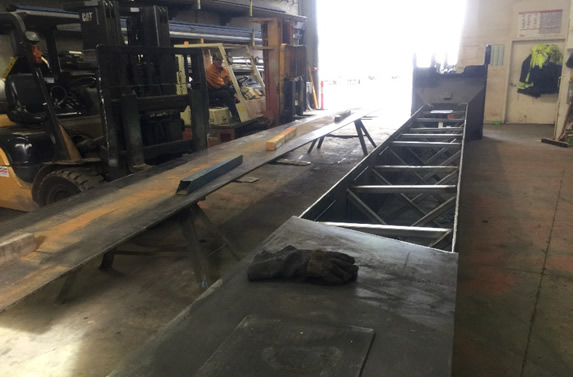

Boncon Services accepted the boom repair, 9meters of plate was replaced on the bottom of a Hyster Forklift boom. This repair was completed within a 2 week timeframe.

At Boncon Services we can modify all your equipment or lifting gear to our engineer specifications and drawings. As seen above, lifting lugs were required to be added as per new standards to lift 39T of ocean cable.

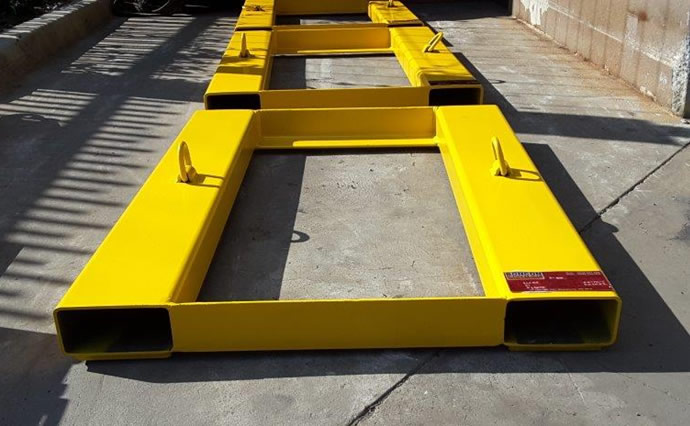

Forklift holders for Forklift Services

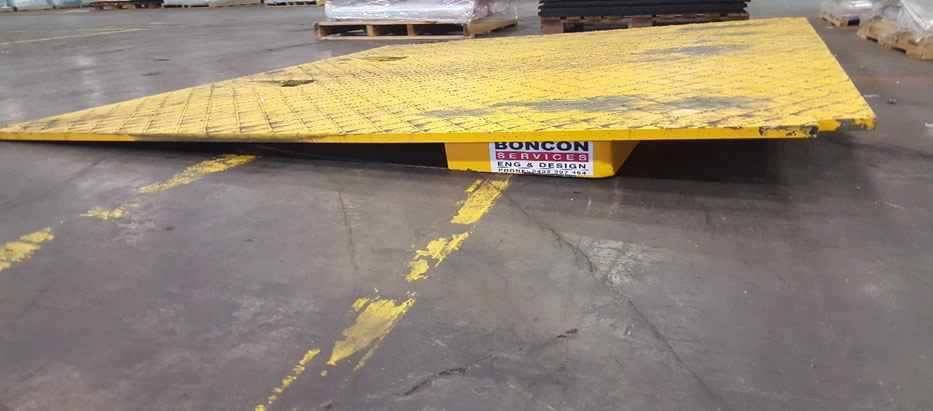

These 4x Heavy duty ramps were fabricated in February 2016. These ramps are used to move heavy equipment in and out of containers, most ramps will break up within 2 to 3 years and will require replacing. Our ramps are designed to never break.

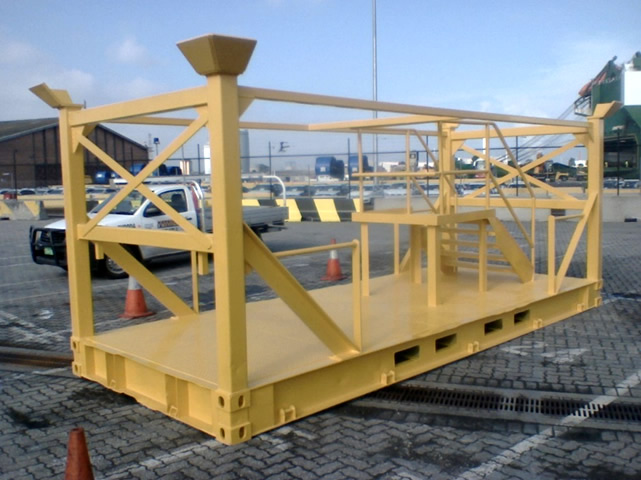

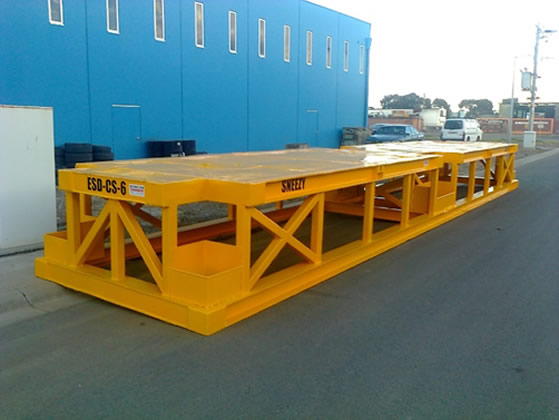

We were required to fabricate 7 container stands as per the request of Patrick ESD. All 7 were named after the Disney dwarfs. Happy, Dopey, Doc, Sleepy, Sneezy, Bashful and Grumpy. These tiles allow the customer to identify which stand they are using, moving and to maintenance in the future.

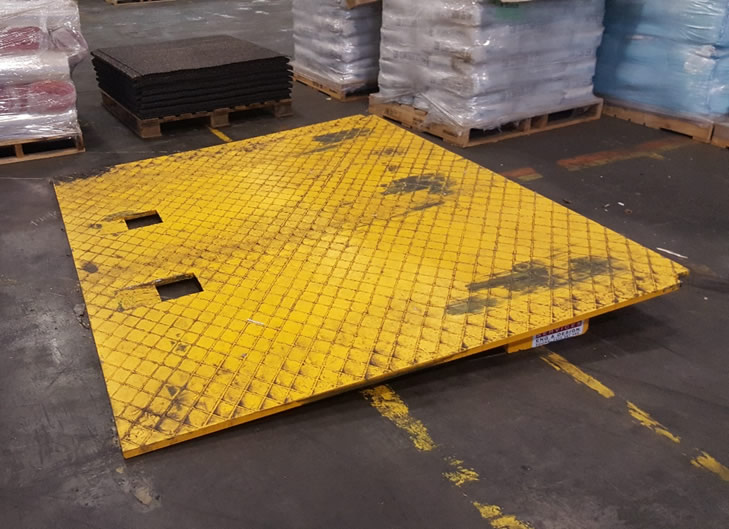

Heavy Duty Ramp 25mm with non-slip surface

Rodney Bonlin is the qualified inspector to certify and maintain these stands under the new regulations with our sister company Boncon Industrial. Boncon Services are contracted to up keep the maintenance on these stands with correct welding procedures.

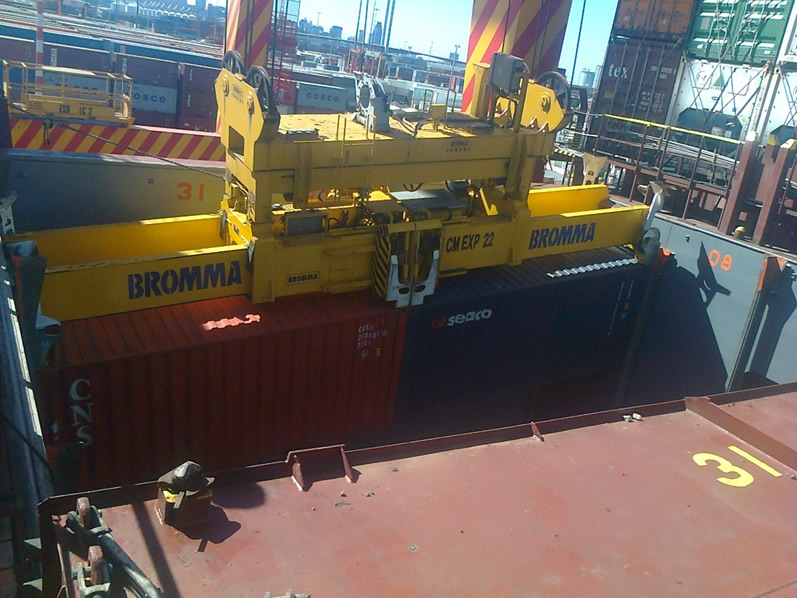

Container weighing 30 tonne each. Overall 90 tonne jammed inside the cell guide. Boncon Services are on call 24/7 to release this issue.

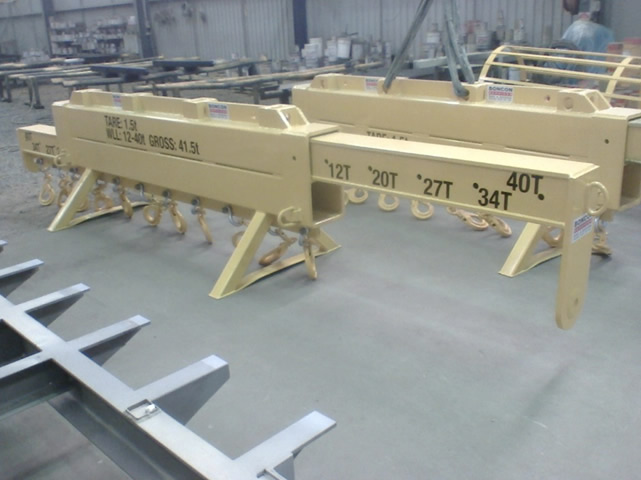

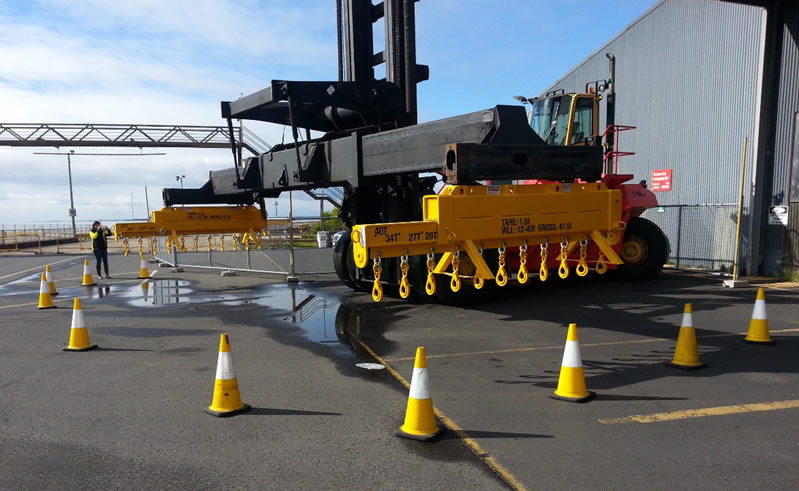

These lifting spreaders were modified for Patrick Stevedoring. The customer required these modifications so they could stack 10 to 11 pipes at one time. They were ESSO oil pipes with special coating that could not be damaged. This lifting spreader can lift up to 45 tonne with an extendable arm.

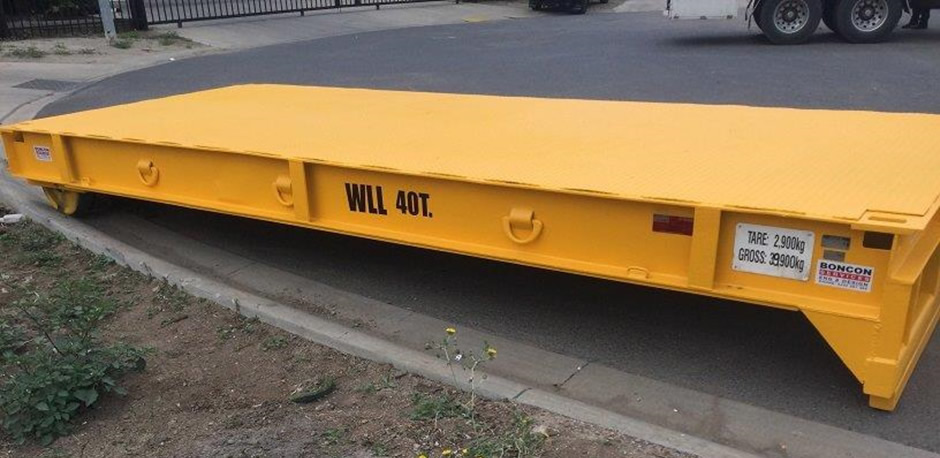

Customer required Boncon Services to increase work load limit from 25 tonne to WLL 40 tonne. All safety checks and modifications to engineer drawings and computations. This was Certified by Boncon Industrial. We can also complete any modifications or upgrades to 40ft trailers to and above 60 tonne.

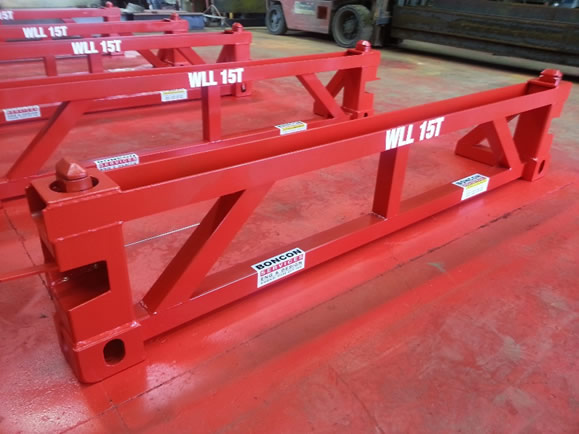

Truck drop deck stands for Lift Australia. This client required Boncon Services to fabricate five drop deck stands for a drop deck trailer in 2014. These stands are used to mount 40ft containers onto. Working load limit is 15 tonne on one end of each stand.

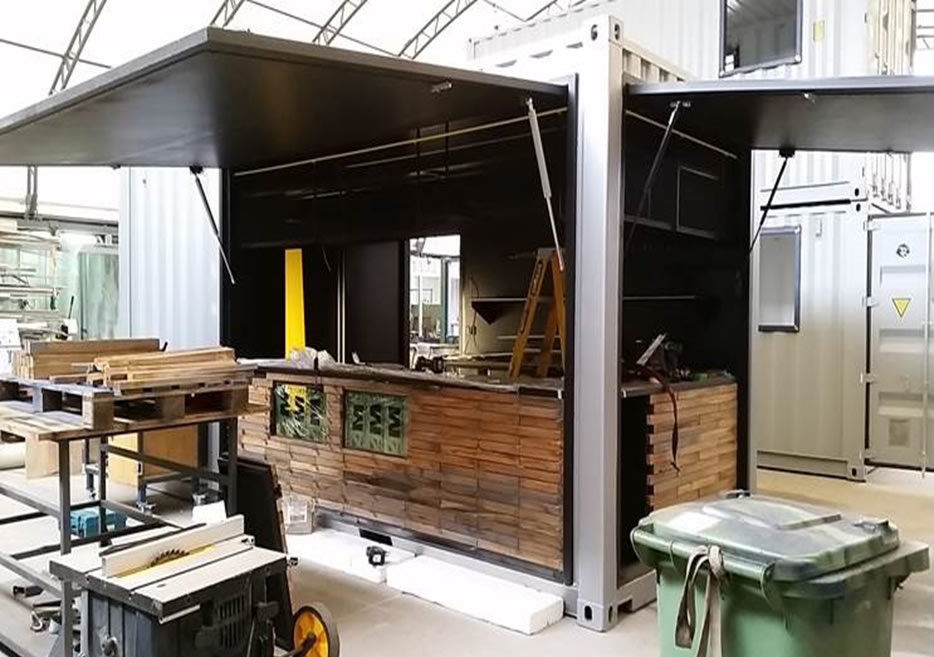

Instant Bar Cafe from Shipping Container - modifications. Boncon Services can modify containers into portable café’s and canteens. As shown in the picture we fabricated a hydraulic door that can open and close for easy entry. The hydraulic system can work off 240 volt power system. The customer required air vents for complete ventilation and fitted awnings. These types of modifications can sometimes be completed on site.
